Basic Info.
Model NO.
NWOW-TK10
Certification
CE, ISO, COC
Folded
Unfolded
Max Speed
41-60km/h
Range per Power
>60km
Brand
OEM
Vehicle Weight
57.5kg
Maximum Load
150kg
Battery Model
60V20ah
Anti-Theft System
Alarm
Braking System
F: Disc Brake, B: Drum Brake
Climbing Slope
6
Tire Size
3.00-10
Transport Package
Iron Frame
Specification
1730*720*1230mm
Trademark
NWOW
Origin
Wuxi China
HS Code
8711600090
Production Capacity
3000unit/Month
Product Description
Description:

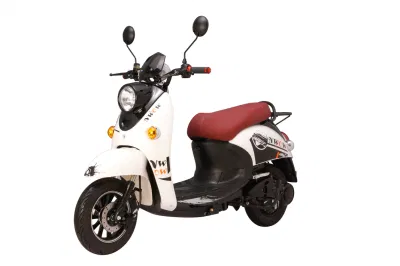

NWOW-TK10:
Classic design Hot-sale electric scooters, Satisfy personal preference;
High-capacity battery ensures long traveling distance, one full charge power enough for days travelling;
Small parking space needed, flexibly drive on roads , best options for daily commuting.
Configuration:
Details:
NWOW-TK10:
Classic design Hot-sale electric scooters, Satisfy personal preference;
High-capacity battery ensures long traveling distance, one full charge power enough for days travelling;
Small parking space needed, flexibly drive on roads , best options for daily commuting.
Configuration:
| Electric bicycle Model: | TK10 | Battery Model: | 60V20AH (LEAD-ACID) |
| Dimension: | 1730*720*1230mm | Power consumption : | 1.8KWH |
| Wheel Base: | 1280mm | Charging Time: | 8H |
| Ground Clearance: | 134mm | Charging Source : | 60V 3A |
| Vehicle Weight: | 57.5KG(without battery) | Maximum Speed : | 45~50KM/H |
| Maximum Load: | 150KG | Mileage range: | 70~90KM |
| Motor Type: | 60V27H800W | Anti-theft System : | Alarm |
| Low voltage protection value: | 52±1V | Braking System : | F: disc brake, B: drum brake |
| High voltage protection value : | 78±1V | Front Absorber : | φ27 Hydraulic Damping |
| Controller Model: | DC60V, 30±1A | Back Absorber : | φ32 Hydraulic Damping |
| Panel Board: | 60V LCD | Front Tire Size : | 3.00-10 |
| Colors Available: | Red,White,Black | Back Tire Size: | 3.00-10 |
| SKD Container loading : | 20'GP :24 pcs | Climbing slope : | 6° |
| 40'HQ :48 pcs | |||
| CKD Container loading : | 20'GP : | 40'HQ :150 pcs | CKD UNIT PRICE |
